PANELS

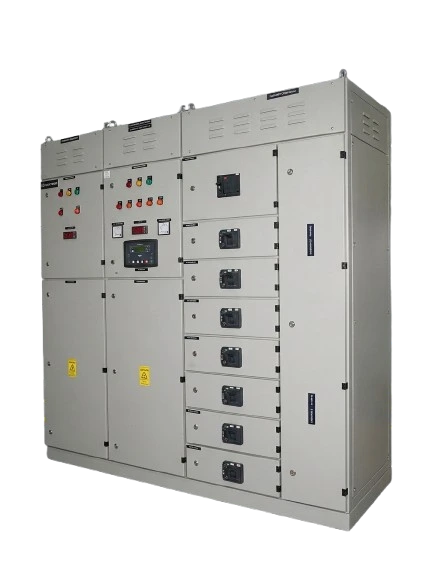

MAIN / SUB DISTRIBUTION BOARDS
Types: Form II, III and IV
Assembly: Fixed / Draw-Out
Installation: Indoor / Outdoor
Current Rating: Up to 3200 A, 70 kA for 1 second
Incomer Device: ACB / MCCB / SFU / Isolator
Outgoing Devices: ACB / MCCB / SFU
Metering: A, V, kW, kWh, kVAh, PF, Hz, etc., as requested
Busbars: High-conductivity, hard-drawn copper bars, tinned and fitted with colour-coded heat-shrink sleeves
Enclosure: E.G. sheet steel, powder-coated to RAL 7032, 1.5 mm / 2 mm thick. Other specifications available upon request.

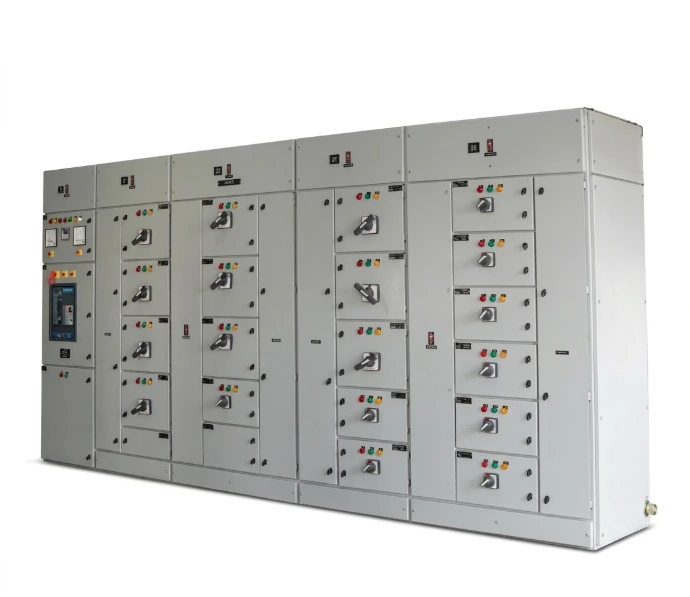

MOTOR CONTROL CENTERS
Types: Form II, III and IV
Assembly: Fixed / Draw-Out
Installation: Indoor
Current Rating: Up to 5000 A, 70 kA for 1 second
Incomer Device: ACB / MCCB / SFU / Isolator
Outgoing: DOL / Star-Delta / VFD / Soft Starters
Metering: A, V, kW, kWh, kVAh, PF, Hz, etc., as requested
Busbars: High-conductivity, hard-drawn copper bars, tinned and fitted with colour-coded heat-shrink sleeves

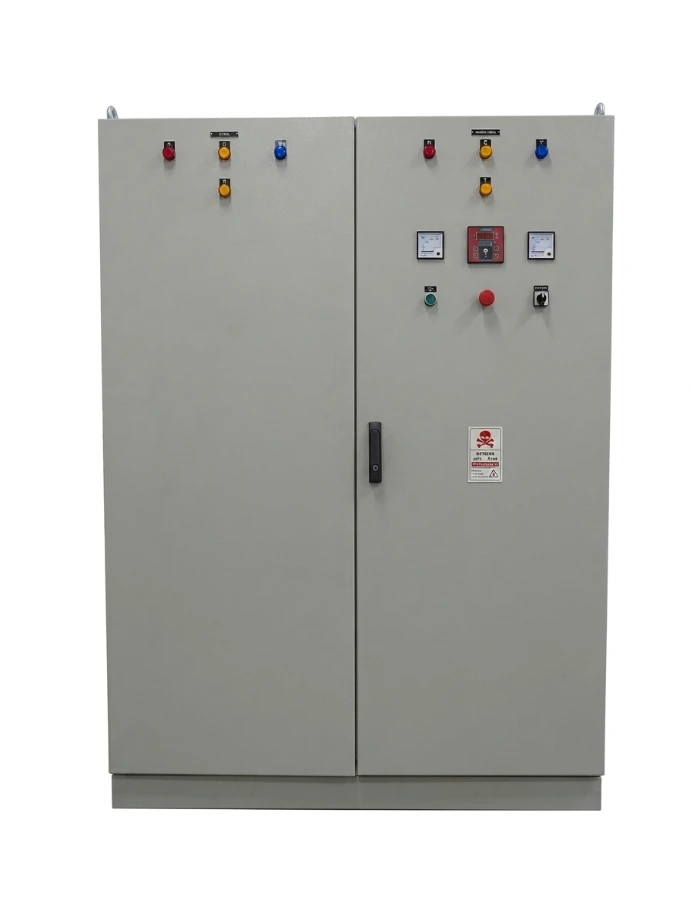

Automatic Mains Failure (AMF) Panel
Application: Automatic mains-to-generator changeover
System: AMF / Auto Start & Stop
Incomer: MCCB / ACB / Isolator
Changeover: Contactor / ATS / Motorized MCCB
Control: AMF Controller with Auto / Manual / Test modes
Generator Start: Automatic on Mains Failure
Generator Stop: Automatic after Mains Restoration
Monitoring: Voltage, Frequency, Phase Failure & Phase Sequence
Protection: Overload, Short Circuit & Under/Over Voltage
Indications: Mains ON / Generator ON / Load ON / Fault
Metering: V, A, Hz, kW, PF, kWh, etc.
Enclosure: E.G. Sheet Steel, RAL 7032 Powder Coated
Installation: Indoor / Outdoor
Busbars: High-Conductivity Copper, Tinned & Sleeved
Customisation: Available as per Project Requirements

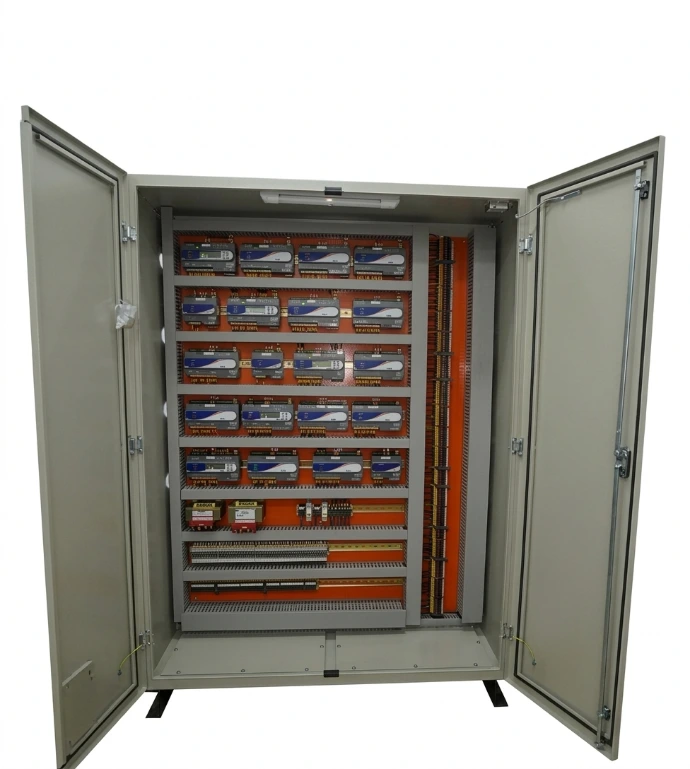

DDC/BMS CONTROL PANELS
Application: Building Automation & HVAC Control
Control: DDC / BMS Controller
Functions: Monitoring, Control & Automation
Inputs: Digital / Analog Inputs
Outputs: Digital / Analog Outputs
Communication: BACnet / Modbus / Other Protocols
Control Devices: Sensors, Actuators, Valves & Relays
Monitoring: Temperature, Humidity, Pressure, Flow, etc.
Interface: HMI / BMS Software / Touchscreen
Protection: MCB / MCCB, Control Fuses & Surge Protection
Metering: V, A, kW, kWh, PF, Hz, as required
Enclosure: E.G. Sheet Steel, RAL 7032 Powder Coated
Installation: Indoor / Outdoor
Customization: As per Project Requirements

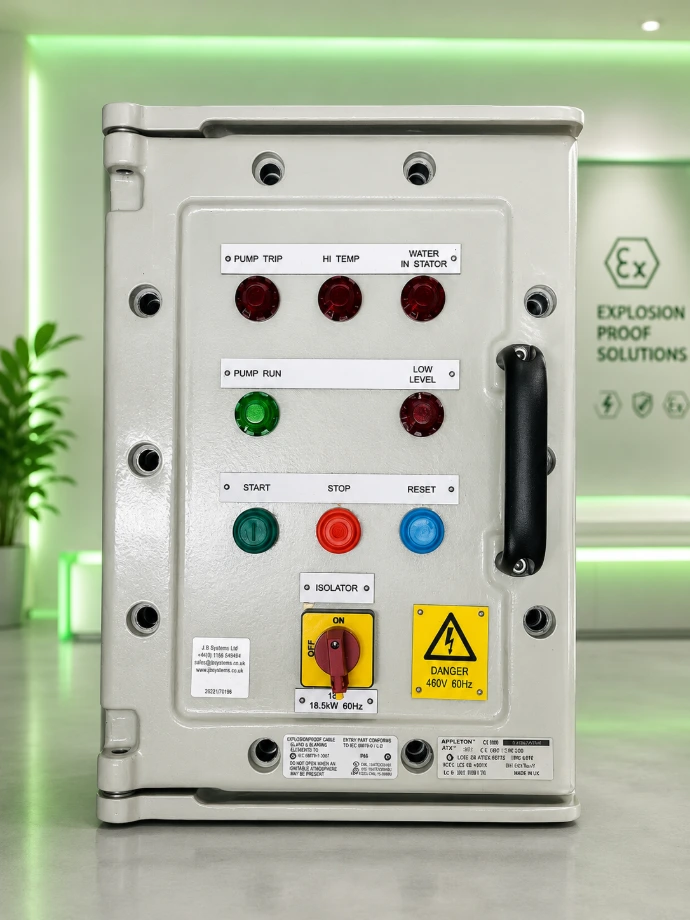

Explosion-Proof Solutions
Reliable explosion-proof electrical products designed for hazardous and high-risk environments. Our range includes explosion-proof control stations, junction boxes, switches, push buttons, lighting fixtures, starters, enclosures, plugs, sockets, and accessories—ensuring maximum safety, durability, and dependable performance for oil & gas, chemical, marine, and industrial applications.
